NEELE NESPD-O Gel-Sealed Modular Type 2 AC Surge Protective Device

NEELE NESPD-O Gel-Sealed Modular Type 2 AC Surge Protective Device

Series: NESPD-O
Type: Type 2 / Class II
Poles: 1P / 2P / 3P
Uc: 275V AC / 385V AC
In / Imax: 5/10kA, 10/20kA, 20/40kA
MOV: 14D / 20D / 25D / 34S
Up: ≤1.5kV / ≤2.0kV
Protection: IP20

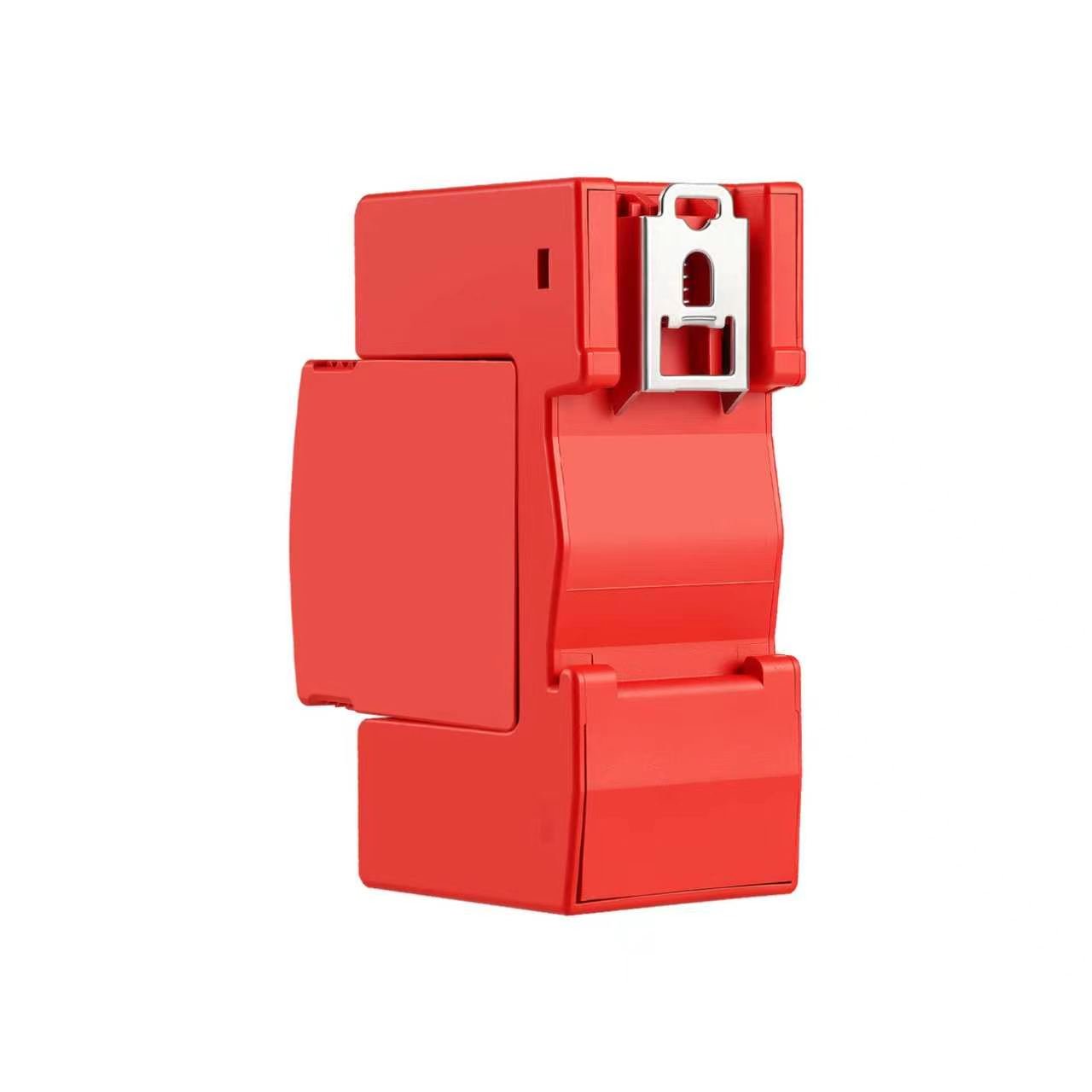

Mounting: 35mm DIN Rail
Certification: CE

The NEELE NESPD-O Series is a Type 2 AC surge protective device featuring a separated base and plug-in modular design.

Its gel-encapsulated MOV structure improves moisture and corrosion resistance, while the visible plug-in slot makes module replacement quick and convenient.

Key Features

• Gel-encapsulated MOV
• Separated base structure
• Plug-in replaceable module
• Built-in thermal disconnection
• Up to 40kA Imax
• 275V / 385V AC
• 1P / 2P / 3P available
• 35mm DIN rail mounting
• OEM logo, color and packaging available

Available Models

Applications

Industrial distribution panels, commercial buildings, AC distribution systems, solar PV AC side, inverters and equipment protection panels.

FAQ

What is gel encapsulation?
Gel encapsulation helps protect the MOV against moisture and corrosion, improving reliability in humid or harsh environments.

Can the module be replaced?
Yes. The plug-in module can be replaced separately without replacing the complete base.

What colors are available?
White, orange and red are available. Custom colors can be provided for OEM orders.
