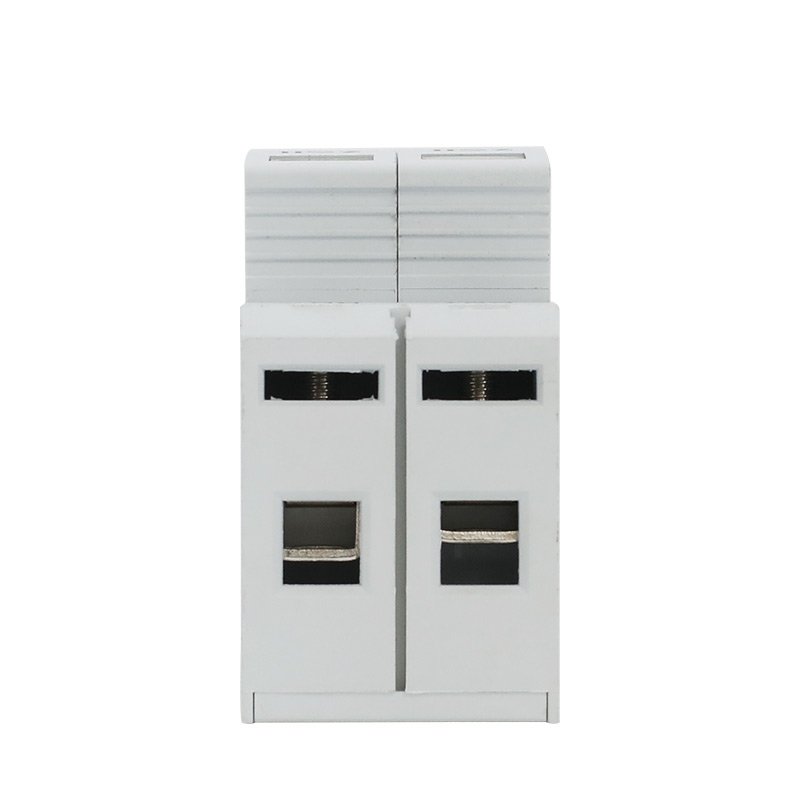

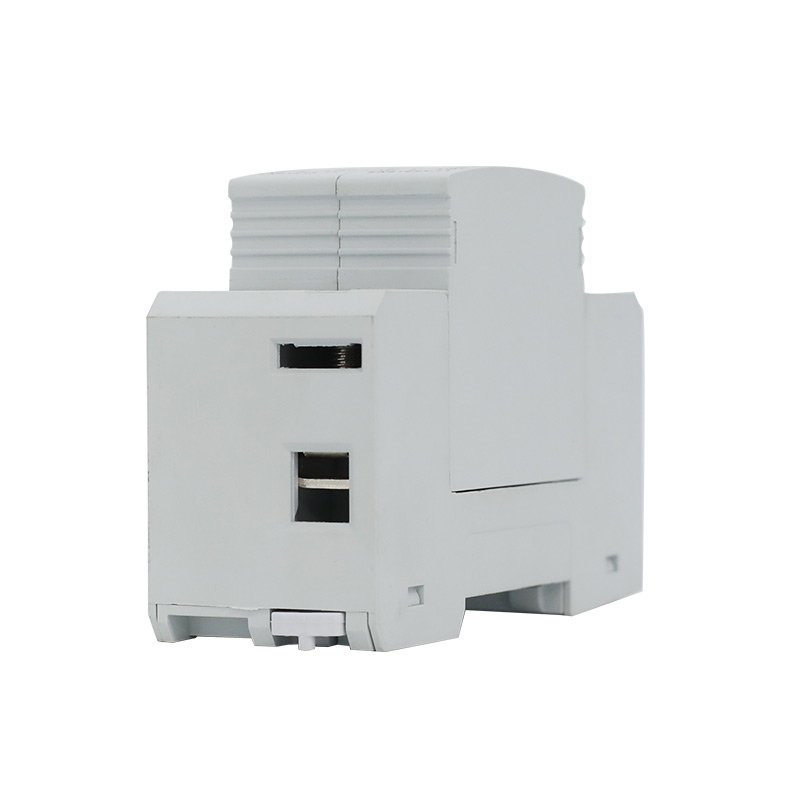

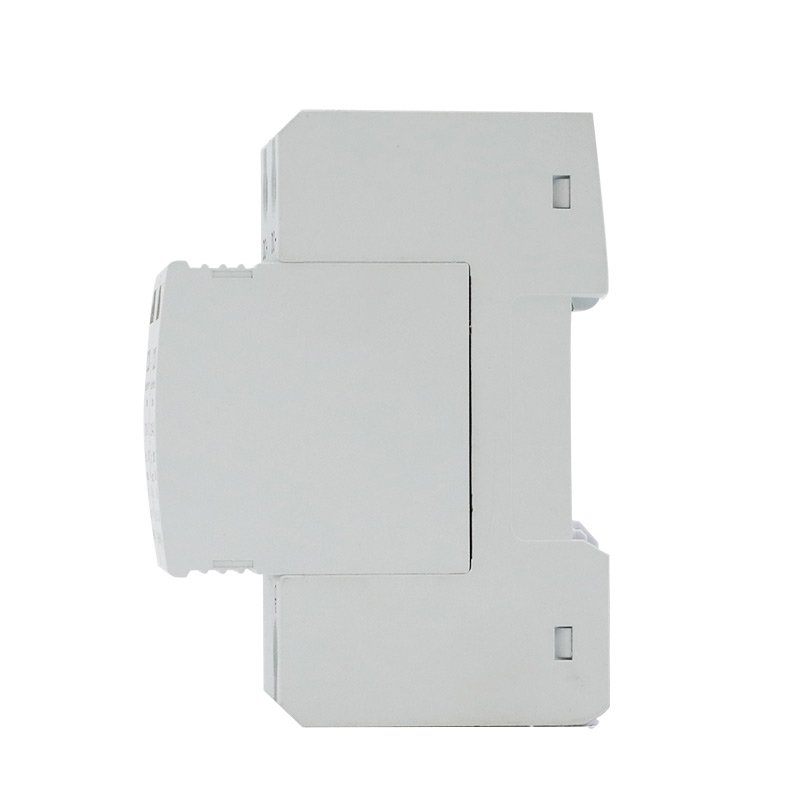

NEELE NESPD-L Integrated Shield Type 2 DC Surge Protective Device

NEELE NESPD-L Integrated Shield Type 2 DC Surge Protective Device

Series: NESPD-L
Type: Type 2 / Class II
Poles: 1P / 2P / 3P
Uc: 250V / 500V / 600V / 800V / 1000V / 1200V / 1500V DC
In / Imax: 5/10kA, 10/20kA, 20/40kA
MOV: 20D / 25D / 34S
Up: ≤1.2kV – ≤5.3kV
Protection: IP20

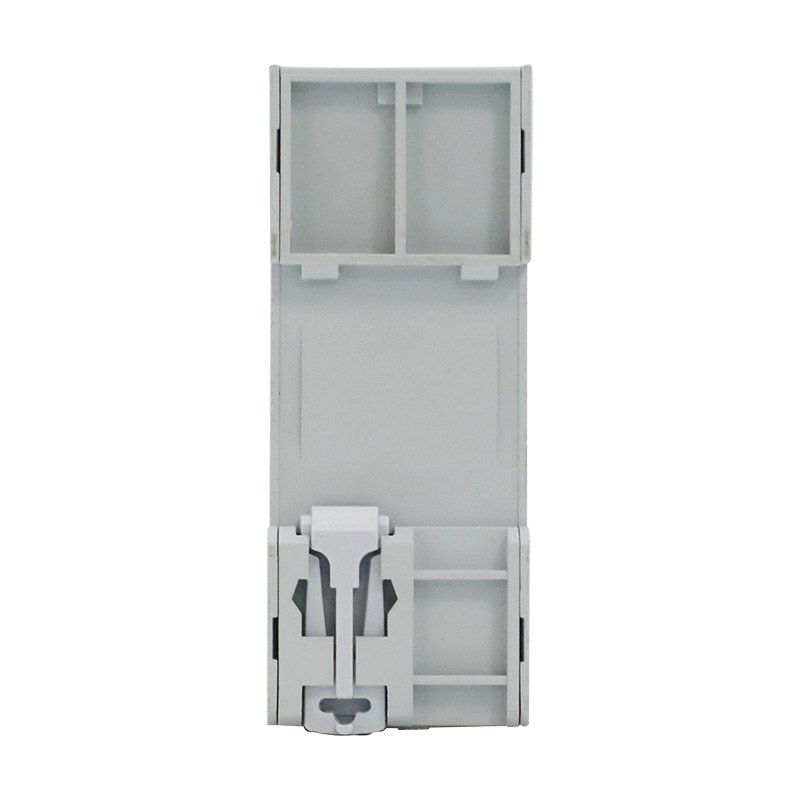

Mounting: 35mm DIN Rail
Certification: CE

The NEELE NESPD-L Series is a Type 2 DC surge protective device designed for photovoltaic, energy storage and other DC power systems.

It features an integrated shield-style base with a clean and compact structure. The plug-in module design allows easy replacement, while the built-in thermal disconnection and DC arc suppression structure help improve safety and reliability in DC applications.

Key Features

• Integrated shield-style base
• Clean and compact structure
• Plug-in replaceable module
• Built-in thermal disconnection
• DC arc suppression structure
• Up to 1500V DC
• Up to 40kA Imax
• 1P / 2P / 3P available
• 35mm DIN rail mounting
• OEM color, logo and packaging available

Available Models

Applications

Solar PV systems, PV combiner boxes, DC distribution panels, solar inverters, battery energy storage systems and other DC power applications.

FAQ

What is the main feature of the NESPD-L Series?
The NESPD-L uses an integrated shield-style base structure, giving the product a cleaner and more compact overall design.

Can the SPD module be replaced?
Yes. The plug-in module can be replaced separately without replacing the complete base.

What voltage ratings are available?
250V, 500V, 600V, 800V, 1000V, 1200V and 1500V DC.

Is it suitable for outdoor PV systems?
The SPD body is rated IP20, so it should be installed inside a suitable weatherproof enclosure or control cabinet for outdoor applications.
