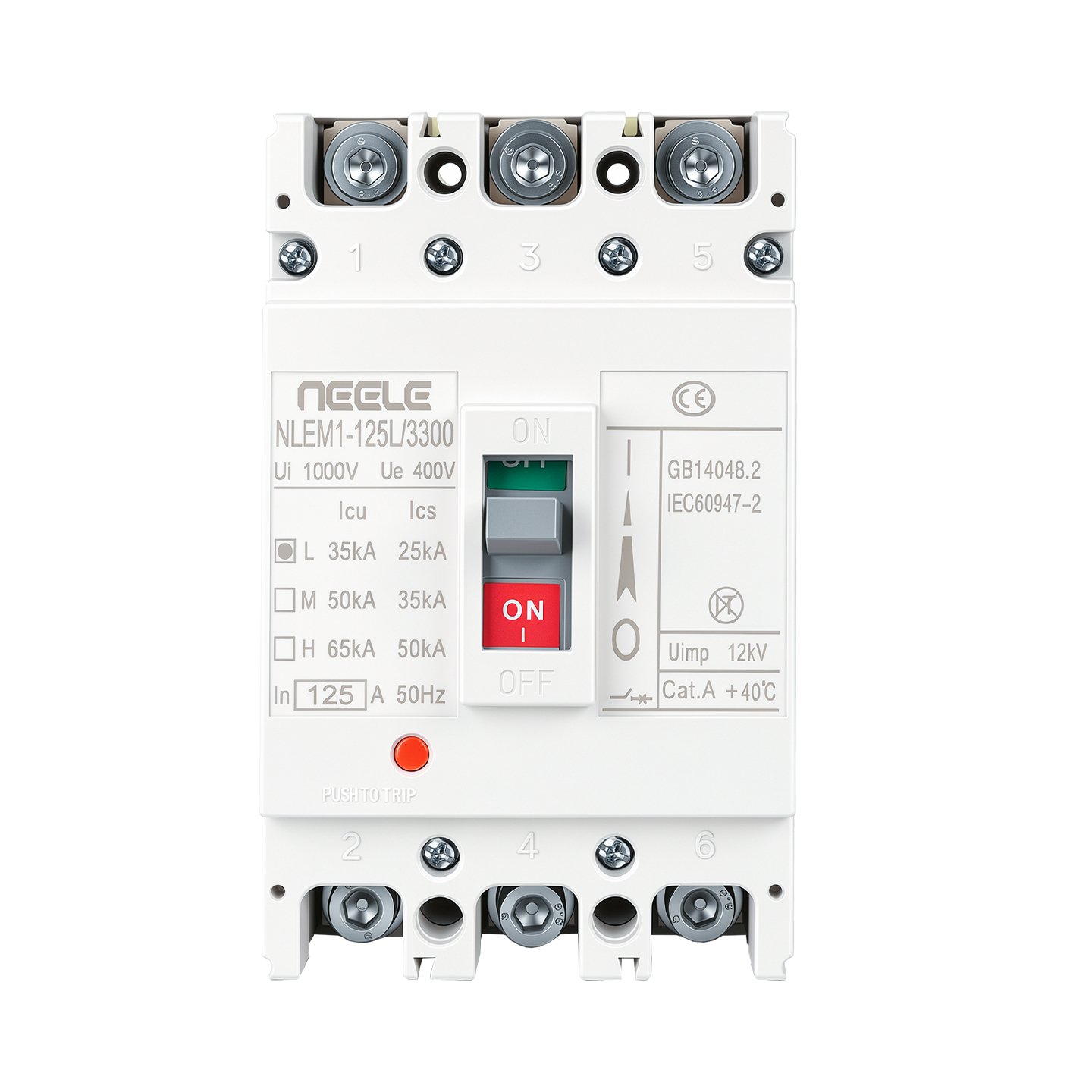

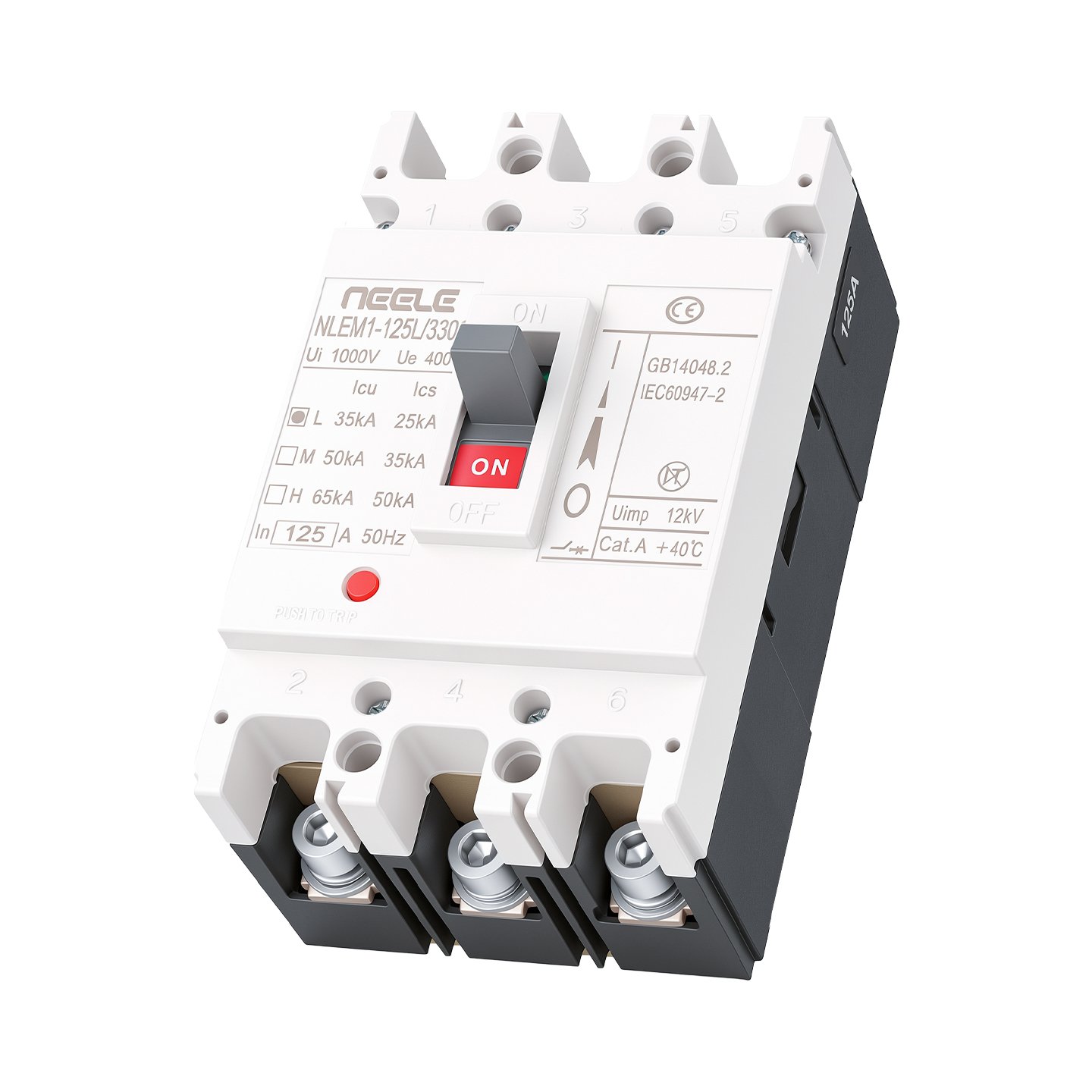

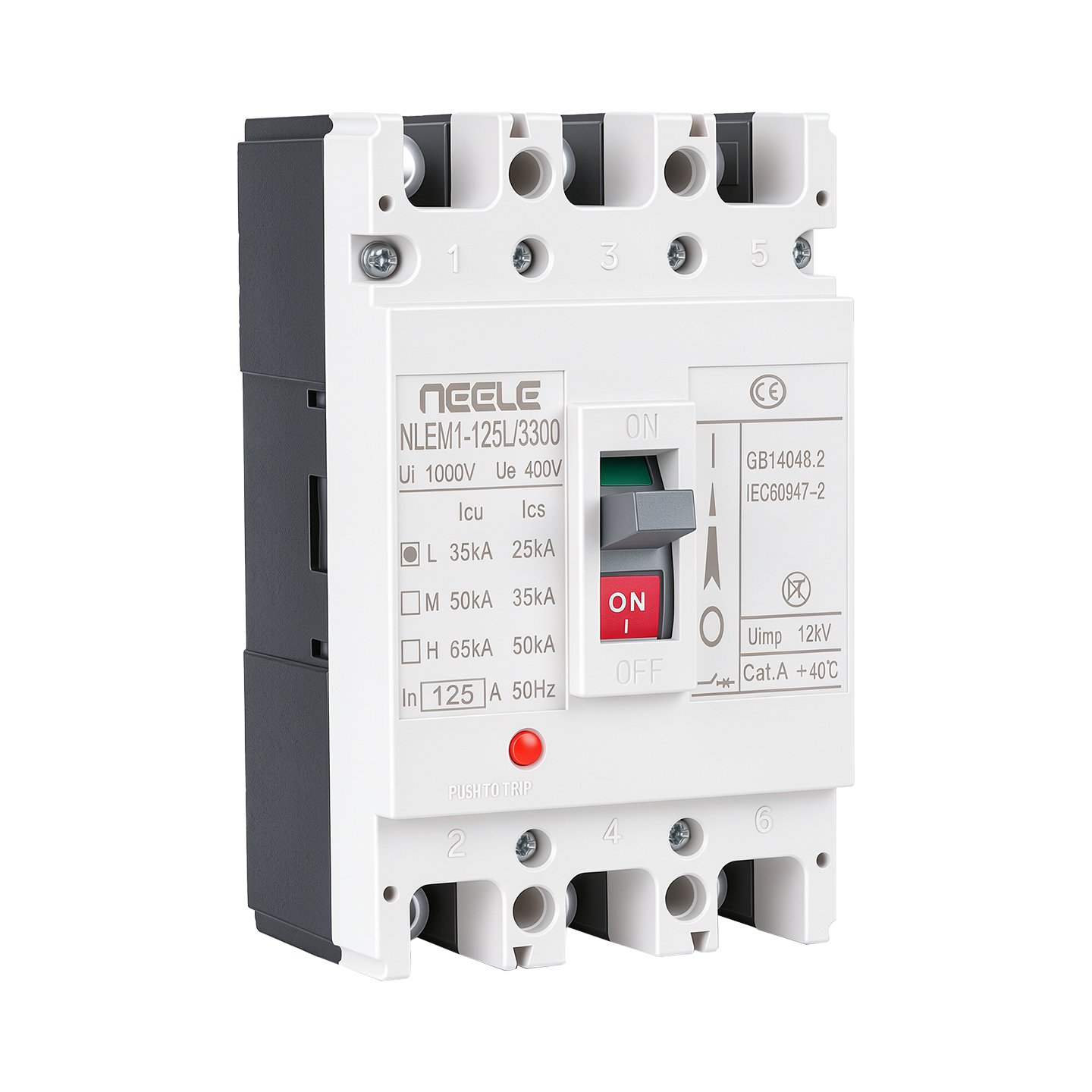

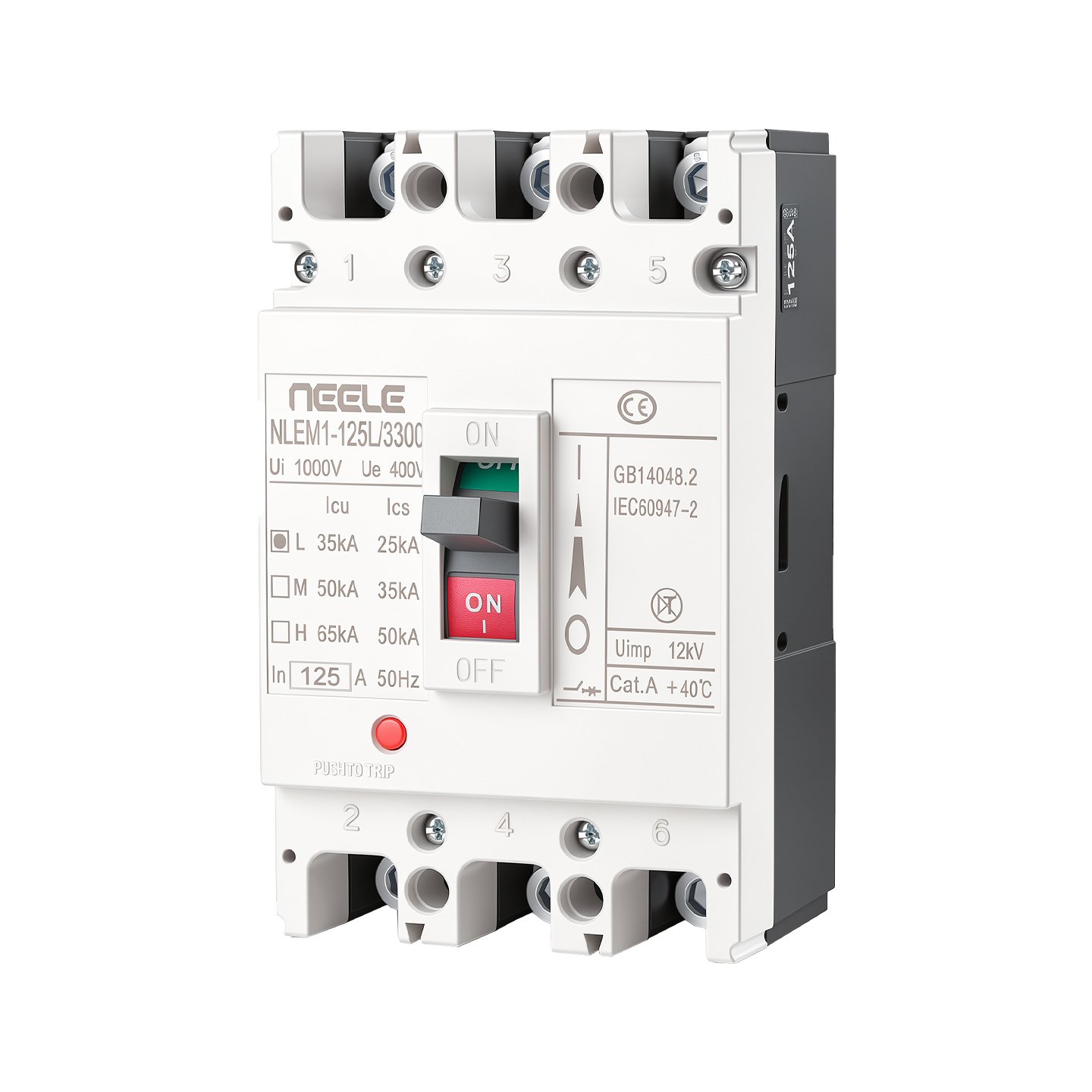

NEELE NLEM1 Thermal-Magnetic Molded Case Circuit Breaker 125A-1600A

NEELE NLEM1 Thermal-Magnetic Molded Case Circuit Breaker

Series: NLEM1
Product Type: Molded Case Circuit Breaker (MCCB)
Release Type: Thermal-Magnetic
Current Range: 125A–1600A
Poles: 1P/2P/3P / 4P
Breaking Capacity Grade: L / M / H
Protection: Overload & Short Circuit
Installation: Screw Fixed
Protection Degree: IP20
Operating Temperature: -5°C to +40°C
Certification: CE

The NEELE NLEM1 Series is a thermal-magnetic molded case circuit breaker designed for low-voltage power distribution systems.

It provides reliable overload and short-circuit protection, with current ratings from 125A to 1600A, 3P and 4P configurations, and multiple breaking-capacity grades for different distribution requirements.

Key Features

• Thermal-magnetic trip mechanism
• Overload protection
• Short-circuit protection
• 125A–1600A current range
• 3P / 4P configurations
• L / M / H breaking capacity grades
• Screw-fixed installation
• Stable mechanical structure
• Easy maintenance
• CE certified
• OEM logo and packaging available

Breaking Capacity Grades

L Grade — Standard breaking capacity
M Grade — Higher breaking capacity
H Grade — High breaking capacity

Your existing product document classifies these approximately as 35kA / 50kA / 70kA+.

Model Naming Examples

Applications

Industrial power distribution, commercial buildings, infrastructure, main distribution panels, power distribution cabinets and other low-voltage distribution systems.

FAQ

What protection does the NLEM1 provide?
The NLEM1 provides overload and short-circuit protection through a thermal-magnetic trip mechanism.

What pole configurations are available?
3P and 4P versions are available.

What current range is available?
The NLEM1 Series covers 125A to 1600A.

What do L, M and H mean?
L, M and H indicate different breaking-capacity grades for different system fault-current requirements.

What does /3300 mean?
It indicates a 3-pole thermal-magnetic trip configuration in the standard base version.

What does /4300 mean?
It indicates a 4-pole thermal-magnetic trip configuration in the standard base version.

Does NLEM1 include leakage protection?
No. The standard NLEM1 is a thermal-magnetic MCCB without leakage protection. Your existing product system separates the leakage-protection type into another series.
