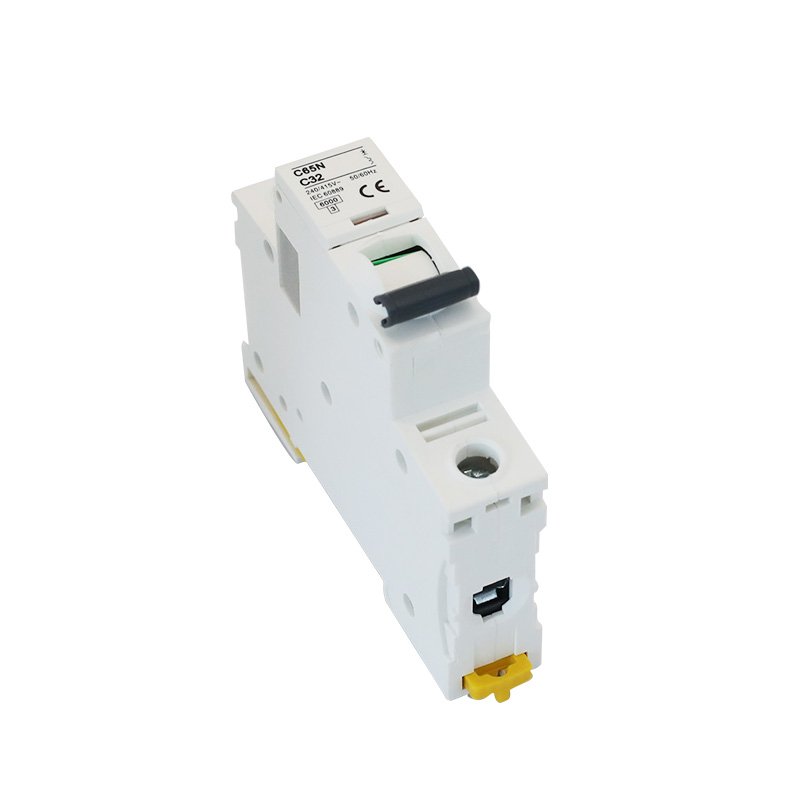

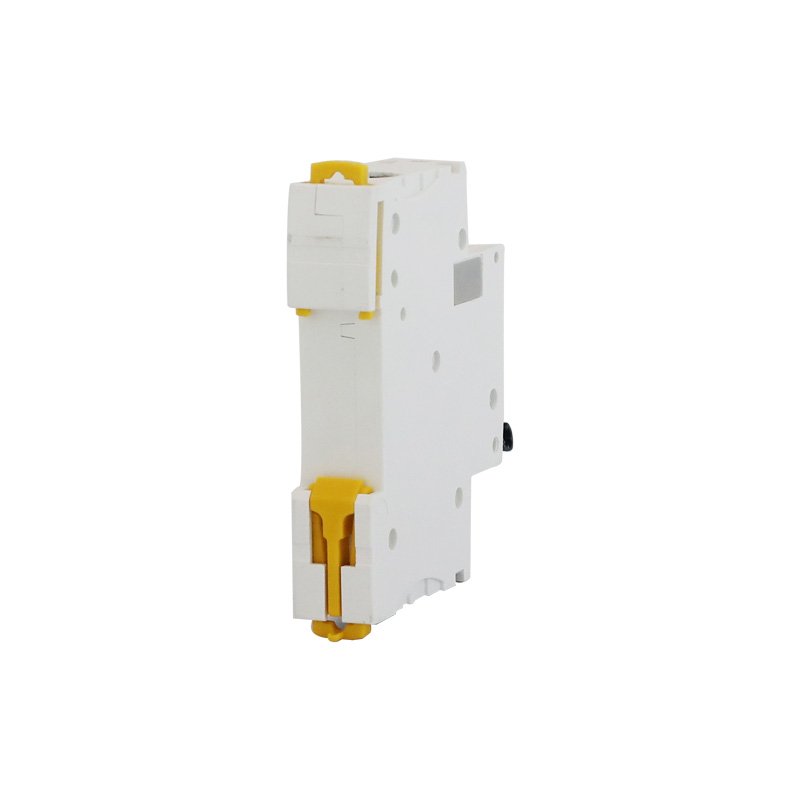

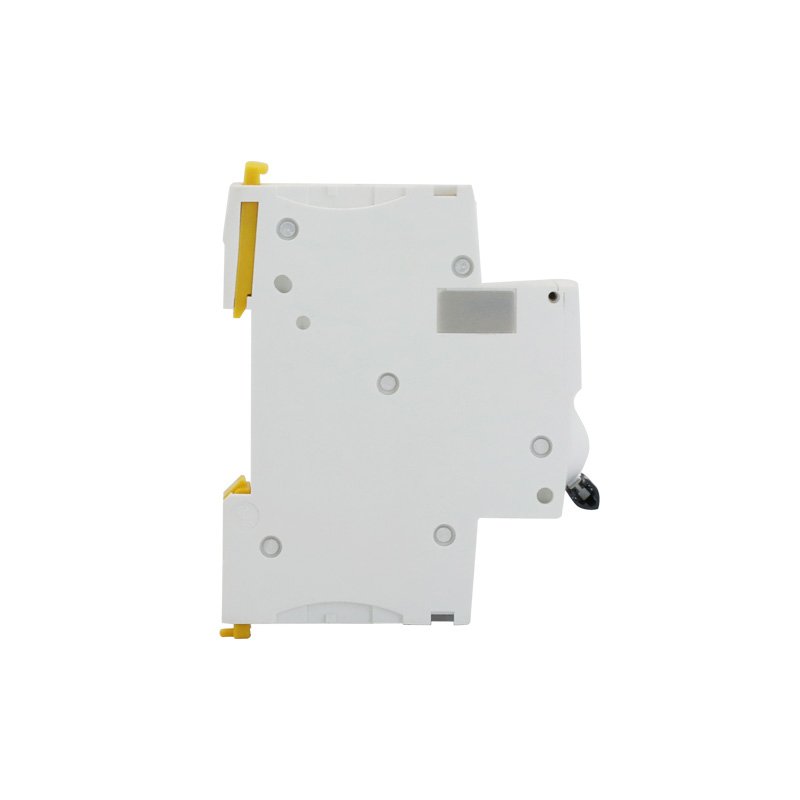

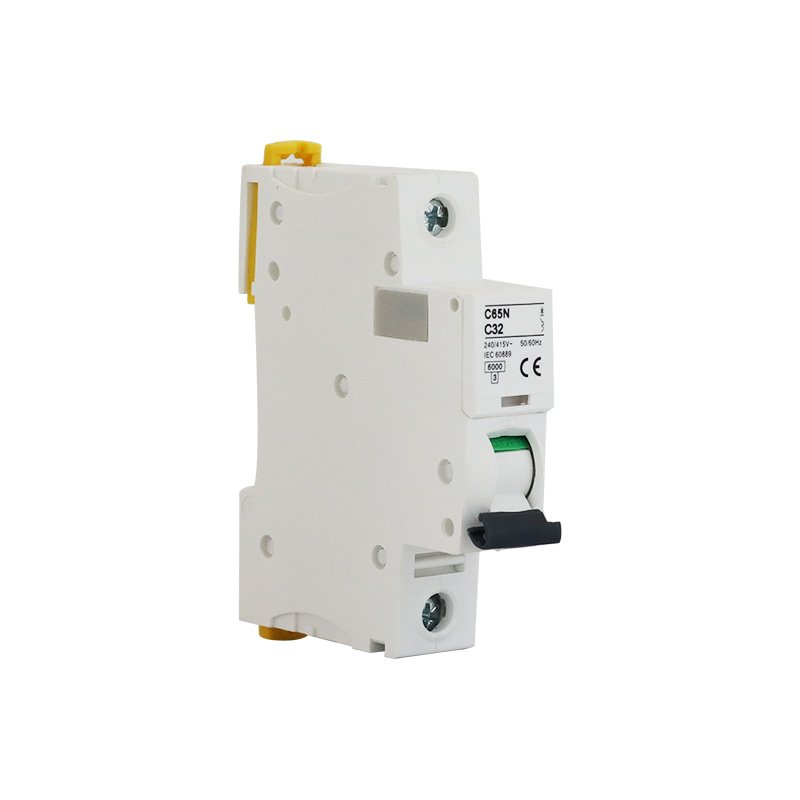

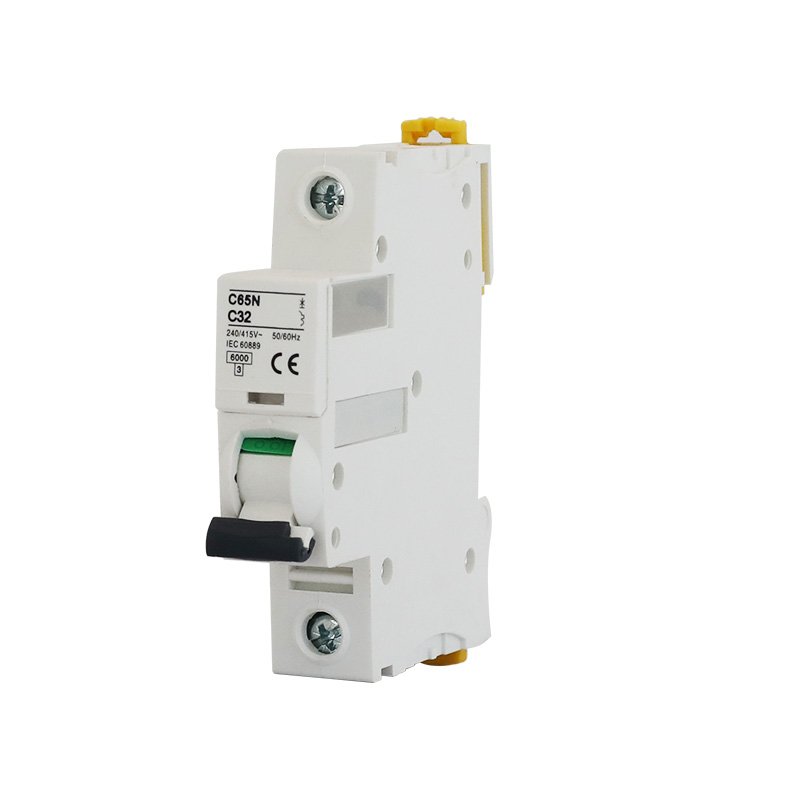

NEELE NEMCB-60 AC Miniature Circuit Breaker 1P-4P 6-63A 6kA

NEELE NEMCB-60 AC Miniature Circuit Breaker

Series: NEMCB-60
Poles: 1P / 2P / 3P / 4P
Rated Current: 6A–63A
Rated Voltage: 230V / 400V AC
Breaking Capacity: 6kA
Frequency: 50/60Hz
Protection: Overload & Short Circuit
Mounting: 35mm DIN Rail
Certification: CE

The NEELE NEMCB-60 AC Miniature Circuit Breaker is designed for low-voltage AC power distribution, providing reliable overload and short-circuit protection.

Available in 1P, 2P, 3P and 4P configurations with rated currents from 6A to 63A, the series is suitable for residential, commercial and industrial distribution systems.

Key Features

• 1P / 2P / 3P / 4P available
• 6A–63A rated current
• 6kA breaking capacity
• 230V / 400V AC
• C-curve tripping characteristic
• 50/60Hz operation
• Overload and short-circuit protection
• Compact modular design
• 35mm DIN rail mounting
• OEM logo and packaging available

Available Current Ratings

6A / 10A / 16A / 20A / 25A / 32A / 40A / 50A / 63A

Applications

Residential distribution boards, commercial buildings, lighting circuits, socket circuits, control panels, industrial distribution systems and other low-voltage AC applications.

FAQ

What pole configurations are available?
The NEMCB-60 Series is available in 1P, 2P, 3P and 4P versions.

What current ratings are available?
6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.

What is the breaking capacity?
The rated breaking capacity is 6kA.

What voltage does the NEMCB-60 support?
The series is designed for 230V / 400V AC distribution systems.

What protection does it provide?
It provides overload and short-circuit protection for AC circuits.

ty, rated for AC230/400V 50/60Hz grids. C-curve thermal-magnetic protection, DIN35MM rail mount, CE certified for residential & commercial power distribution.
